Wiring the Car's Nervous System: CAN, the BMS, and the Motor Controller

An electric FSAE car is a distributed system: custom PCBs, a battery-management system watching every cell, and a 3-phase motor controller that turns pack energy into lap time. As Software System Lead I developed the CAN 2.0 communication that lets all of them share one picture of the car, running on STM32 microcontrollers across our custom boards.

One bus, three dialects

The interesting part of vehicle networking isn’t sending frames, it’s agreeing on what they mean. The work spanned three interfaces:

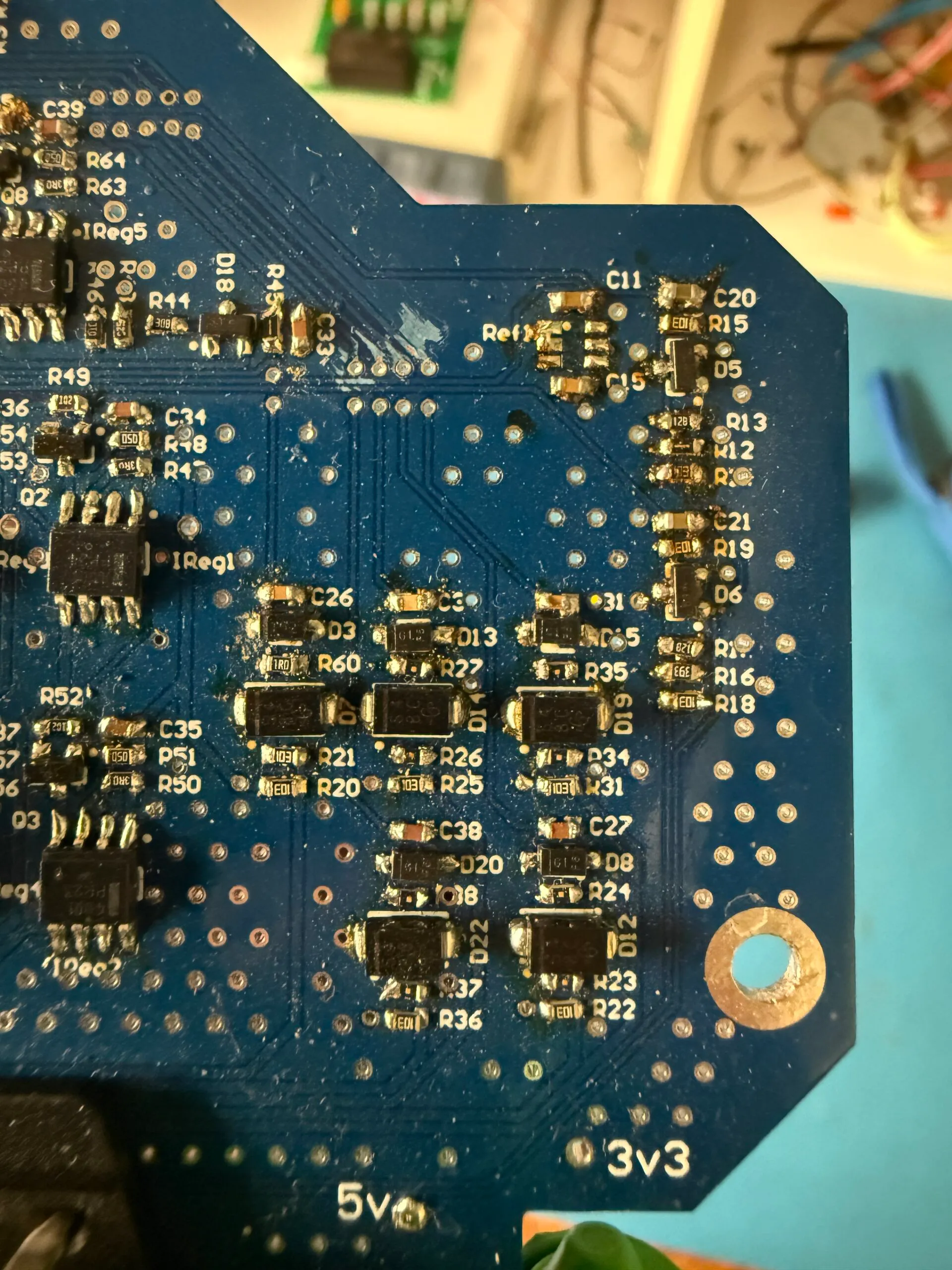

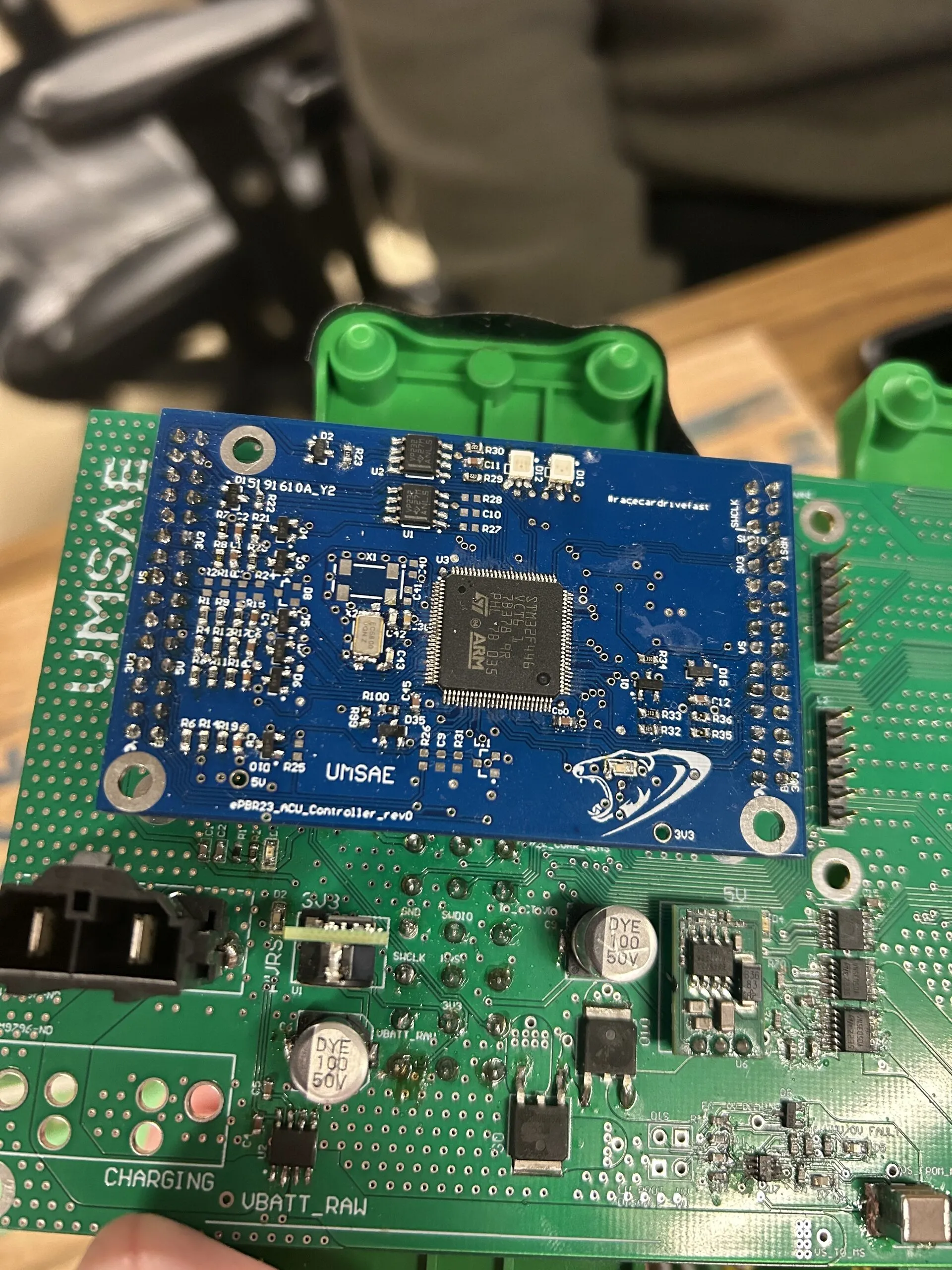

• Custom PCBs to each other: defining the message set for our own boards so pedal position, vehicle state, and fault flags arrive predictably.
• The BMS: decoding pack state (voltages, temperatures, fault status) so the rest of the car can react to the accumulator’s health.
• The PM100DX motor controller: command and telemetry framing for the 3-phase inverter, where a misunderstood message doesn’t just log an error, it moves the car.

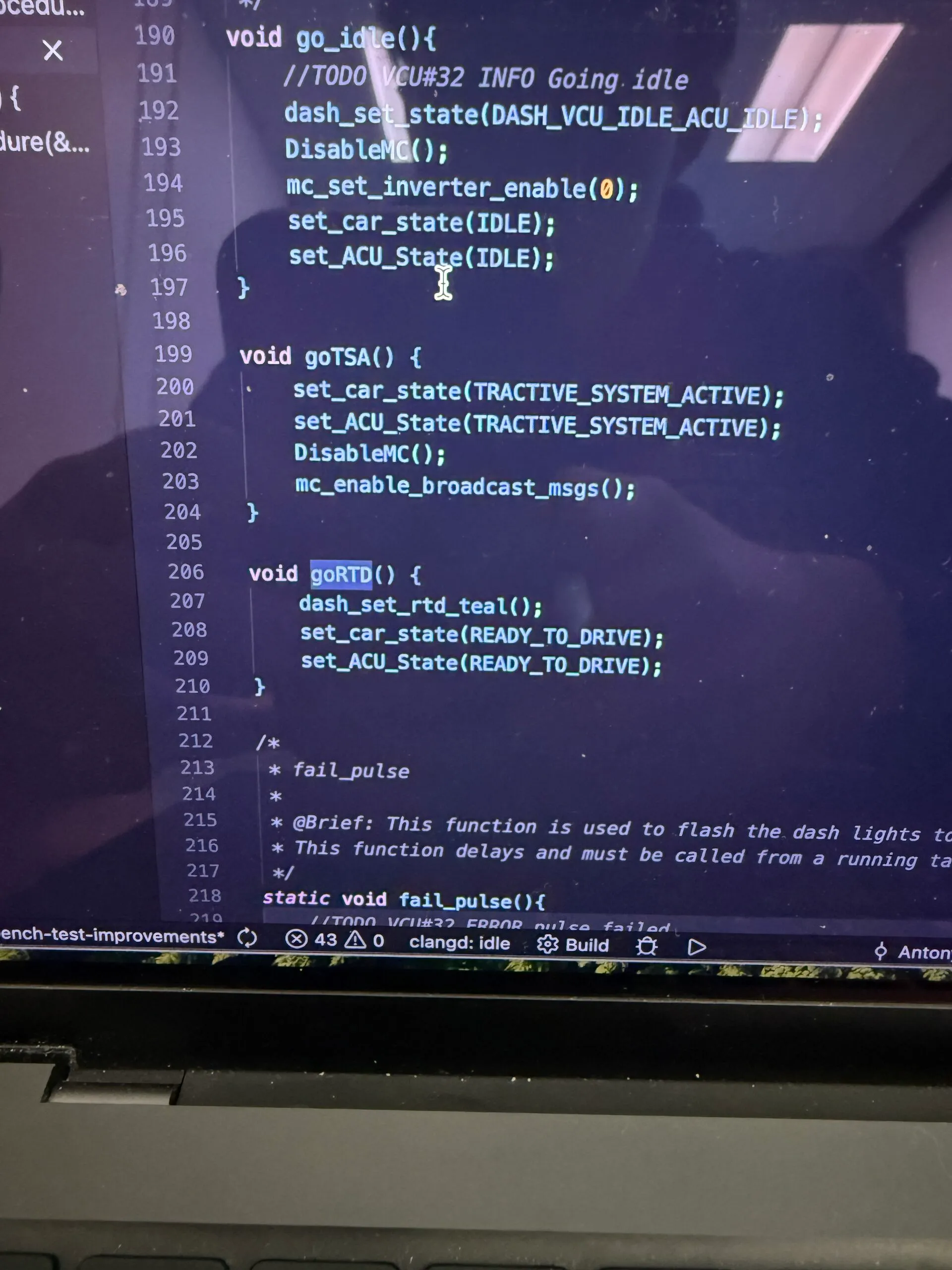

Why this is safety work

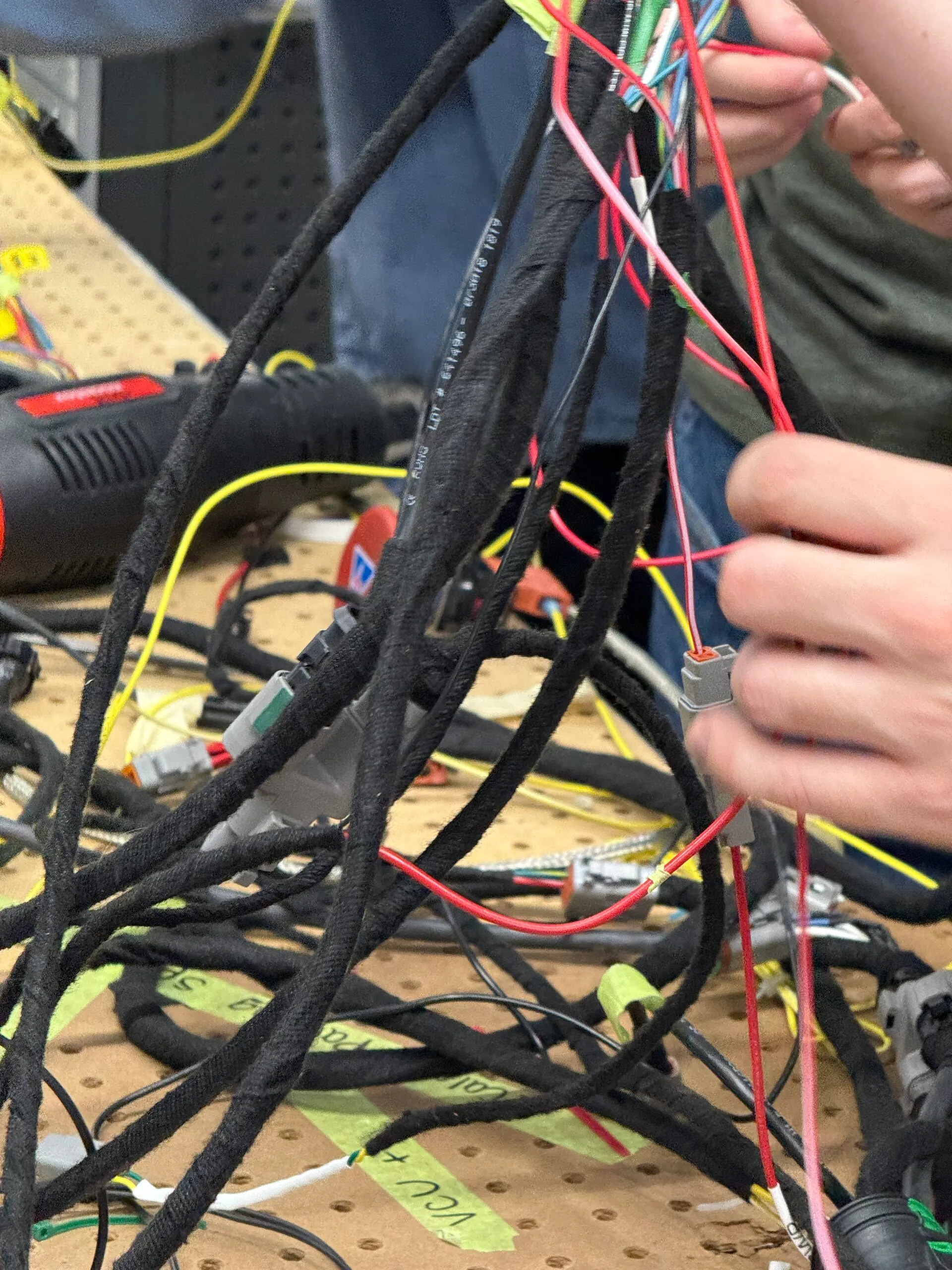

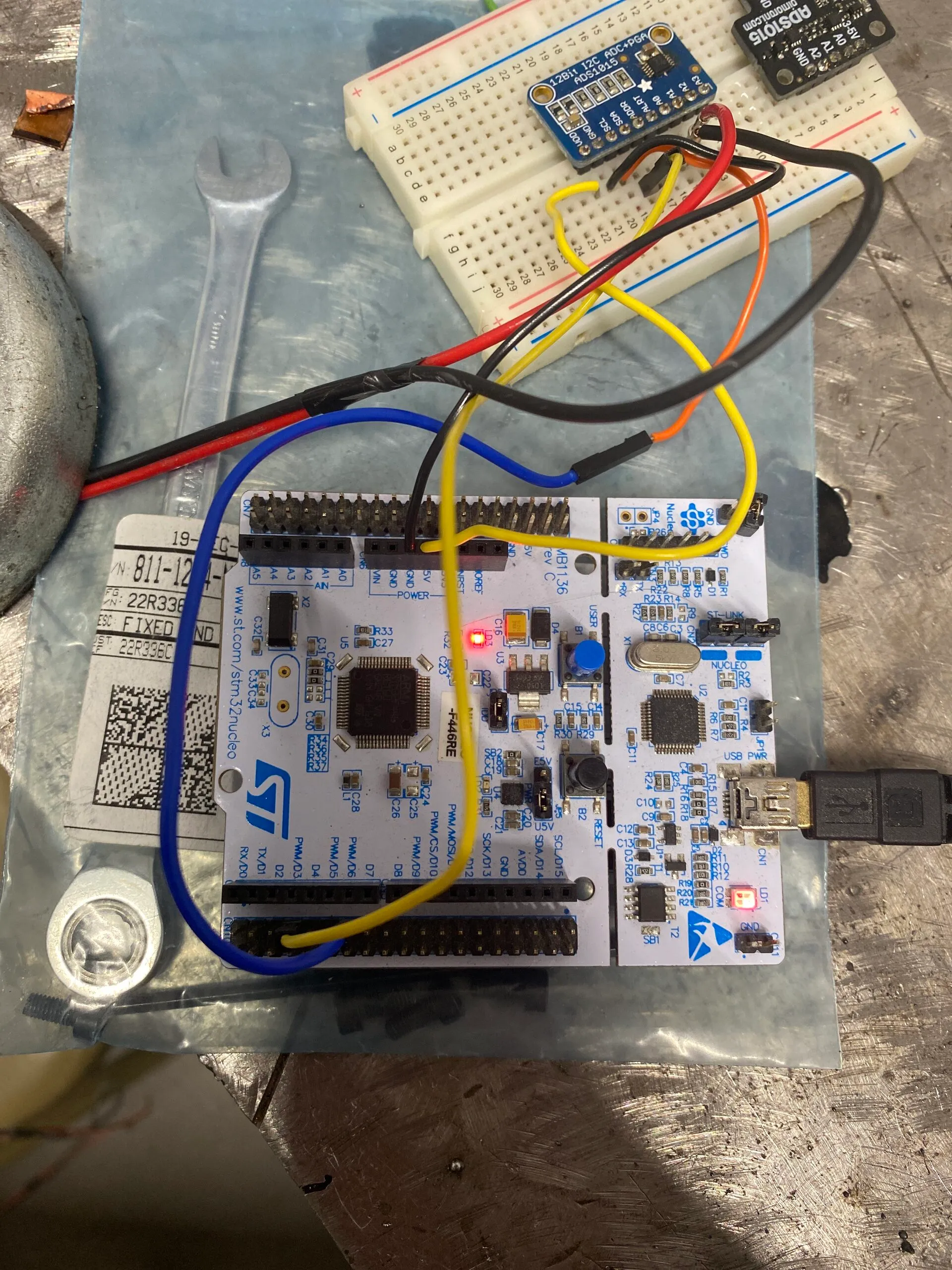

The BMS exists to keep a high-voltage pack inside its safe envelope, and the vehicle’s response to a BMS fault travels over this bus. That framing shaped the engineering: predictable IDs and priorities, defined behavior when a node goes quiet, and bench testing with bus captures before anything touched the car. Tools like CANdb++ and PCAN-View lived permanently on my second monitor.

What it taught the team

This network is also where I learned to lead: 10+ software members build against these interfaces, so the message set became documentation, code review became teaching, and CI pipelines in GitHub Actions became the way we keep five codebases honest. The bus is the contract between every subsystem on the car, and contracts are only useful when everyone can read them.
